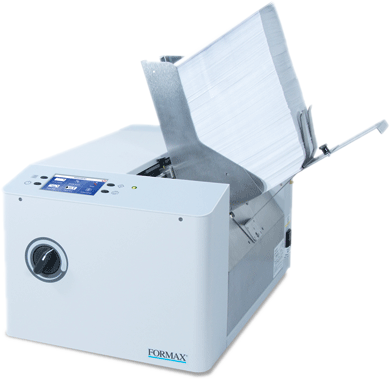

The AP2 Monochrome Digital Address Printer with Integrated Feeder combines user-friendly features in a rugged, compact machine. Using thermal inkjet technology, it can print up to 22,000 #10 envelopes an hour, with variable print resolutions up to 600 dpi, and the ability to print on a variety of coated and uncoated paper stocks.
Its 4.5” color touchscreen features an adjustable backlight, and allows users full control of its functions, including the ability to store and recall common print jobs, up to 16GB. The integrated feeder holds up to 500 #10 envelopes at a time, and can handle materials up to 1/4” thick. The fixed print head uses 4 proprietary inkjet cartridges simultaneously to produce an image area up to 2” x 15”, and can be adjusted to a maximum vertical print range of 10.75”.
Additional user-friendly features include on-screen ink monitoring for both % used and approximate pieces remaining; USB 3.0/LAN connectivity; the ability to print any TruType font; spot color capability; batch/job/lifetime counters; and the capacity to print on UV paper stocks. An optional 3-foot conveyor stacker is available for easy handling after printing.
The AP2 Address Printer provides a durable, affordable and intuitive solutions for schools, small offices, churches, associations and entry-level mailers.
Operational Features

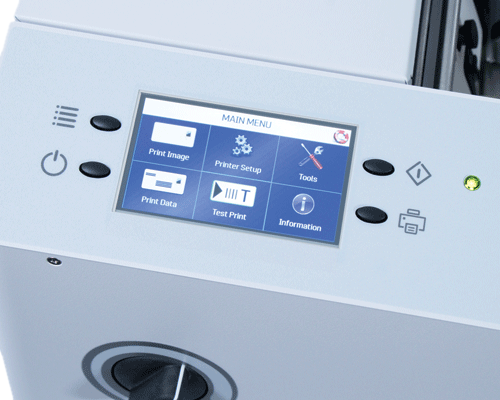

User-Friendly Touchscreen: 4.5” color touchscreen with adjustable backlight
Fast: Prints up to 22,000 #10 envelopes per hour, up to 30,000 postcards per hour
Fixed Head: 4-pen stitched single-head design
Job Memory: Store and recall common print jobs, up to 16GB

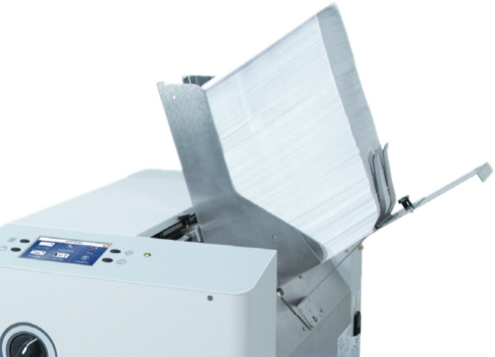

Integrated Feeder: Holds up to 500 envelopes
USB 3.0 / LAN Connectivity: Easily connect to your print source
Batch / Job / Lifetime Counters: Keep an accurate count of addressed pieces On-Screen Ink Monitor: Displays ink status (% used and approximate pieces remaining)
Printing Features

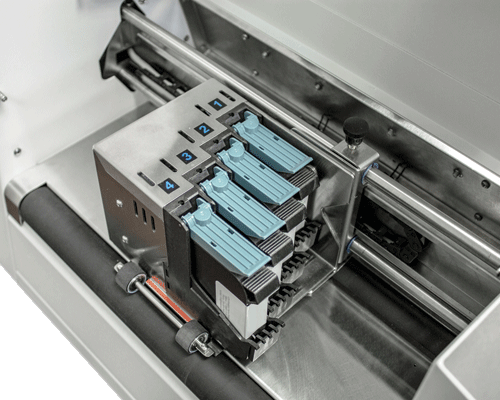

Inkjet Technology: Uses 4 high-capacity thermal inkjet cartridges Variable Print Resolution: 150 DPI (600 x 150) up to 600 DPI (600 x 600) Image Area: Up to 2” high by 15” long
TruType Enabled: Print any TruType font installed on a PC
Spot Color Capability: Blue, Red, Green, Invisible
Versatile Print: Prints on a variety of coated and uncoated stocks

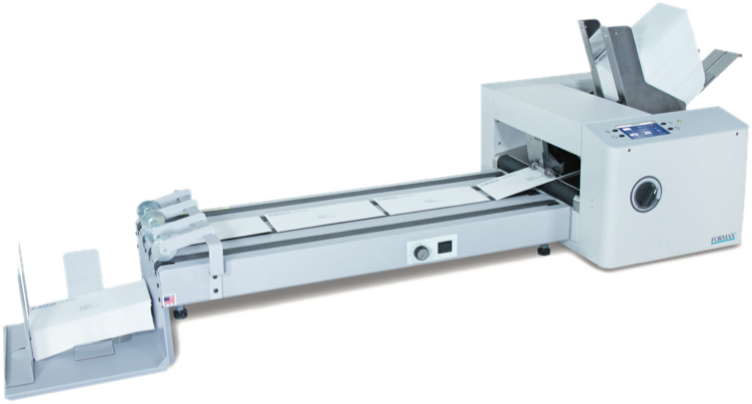

AP-05 3-foot Bi-Directional Conveyor/Stacker with Tabletop Legs and Catch Tray: Neatly holds printed pieces for easy removal
Bulk Mailer Software: PAVE/CASS presorting, data management, Intelligent Mail barcode support
Print Technology
Thermal inkjet, 4 high-capacity cartridges
Addressing Speed
Up to 22,000 #10 envelopes/hour
Up to 30,000 postcards/hour
Print Quality
Up to 600 x 600 DPI
Imaging Area
Up to 2” x 15”
Material Size
Min: 5” L x 3” W
Max: 15” L x 13.5” W
Material Thickness
Up to 6.3mm / 1/4”
Duty Cycle
Up to 500,000 per month
Memory
Up to 16GB
Counters
Batch
Job
Lifetime
Print Head Layout
4 pen stitched design
Fonts
All TruType fonts available on PC
Ink Monitor
Intelligent cartridge tracking
Feeder Capacity
Up to 500 10# envelopes
Print Orientation
Right to left
Software
Drivers for Windows 7 and higher
PC Interface
USB 3.0
Ethernet
Dimensions
23” L x 22” D x 19” H
Weight
60 lbs
Power
115VAC 50/60 Hz
All technical data and dimensions are approximate values
