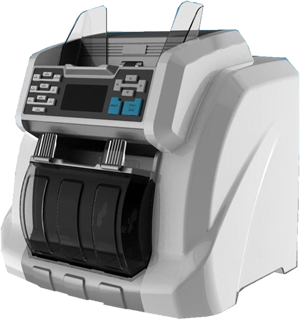

Binatek BN320E Currency Sorter

Binatek BCS160 Currency Counter

Compact design with multi currency recognition

THE BCS160 model is an Non-stop 1+1 pockets banknote discriminator banknote sorter which is cost effective,reliable,and heavy duty machine. It is equipped with DOUBLE CIS, with the latest and advanced counterfeit detection technology,it is very easy to upgrade the software by USB to fit the new issues and new counterfeit banknotes.

Also it can collect banknotes images both through USB and LAN port. This machine is ideal for bank tellers and CIT company where banknotes need to be counted.This machine is ideal for bank tellers and CIT company where banknotes need to be counted.

Compact size - It can be placed even on small table.
TFT Screen - It has clearly visible 3.5 inch TFT screen.
Multi-Currencies Capability - It can be installed with 14 different currencies in one machine at most.
Reliable Counterfeit Detection - It can detect the note by UV, MG, MT, IR, CIS and serial number.
Serial Number Read and Print - It can read serial number from both sides, output and print the serial number.
Easy Jam Removal and Sensor Cleaning - It is easy to open the passage from rear side to clear jammed notes and clean the sensors.
Counting Modes
Mixed: the machine will keep the detailed information of notes in stacker including total quantity and total amount and detailed information for notes in reject pocket.
Single Denomination: the machine will sort the notes according to the first note it counts , in the meantime, it will calculate and save the total amount, total quantity in stacker and quantity in reject pocket. Note: the notes rejected under this mode will give a size error code reminding.
Piece: the machine only calculate the quantity of notes regardless currencies.
Face and Orientation
The machine will choose first note's face and orientation as standard and firstly reject different banknotes, then reject notes with different face or orientation
Batching
Quantity batching
Amount batching
Serial Number Recognition
Counterfeit Detection
CIS
UV
MG
IR
Dimensions:
375 x 343 x 318 mm (HxWxD)
Weight:
13 kg or 28.66 lbs
Speed:
up to 1200 notes / min
Hopper Capacity:
Maximum capacity of 600 documents
Stacker Capacity:
Maximum capacity of 200 documents
Reject Pocket Capacity:
Max. 50 notes
Batching Option:
Batching from 1 to 200
Document Size:
Length: 100̴ - 185 mm
Height: 60̴ - 100 mm
Note Thickness:
0.08 mm ~ 0.12 mm
LCD Display:
128 dot x 64 dot display
Operations:
Automatic start & stop
Recognition Mode:
Single
Mixed
Counterfeit Detecting:
CIS
UV
MG
IR
Automatic Stop:
Automatic stop
Feed:
Friction feed
Interface:
RJ45
S-VIDEO
USB
RS232
SD Card

All technical data and dimensions are approximate values
